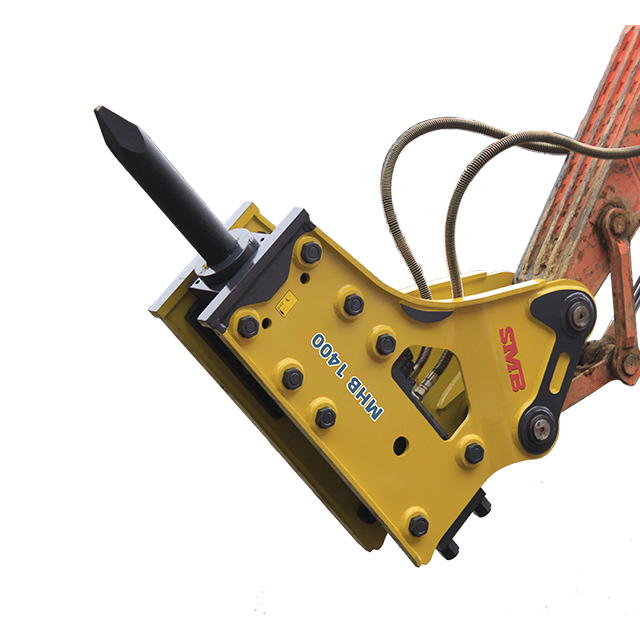

Hydraulic Breaker

SMB Breaker Features:Powerful impact force

The combination of hydraulic and nitrogen ensures powerful impact force，Optimized cylinder piston design

Cylinder piston made of high-strength material treated by special technology has stronger wear resistance, and the reasonable match with the drill rod allows the impact energy to be fully transmitted reducing the rebound force, low maintenance, and low maintenance cost.

High-pressure accumulator

Reduce hydraulic pulsation, reduce the impact on the main pump and hydraulic system of excavator, and make the impact more stable and increase the impact force

Reinforced shell，More suitable for complex working environment

Correct selection of the breaker.

When matching the breaker with the excavator, the following three issues should be considered:

First, consider the flow rate of excavators

The breaker is a device that relies on the hydraulic pressure of the excavator to work. To achieve the best performance, it is necessary obtain the appropriate hydraulic pressure from the excavator. Generally, the flow rate of the breaker is 60-80% of the total flow rate of theator.

Second, consider the lifting capacity of the excavator

The breaker is a device that is installed on the excavator for use. Therefore, the lifting capacity the excavator should be able to withstand the weight of the breaker. Otherwise, there is a possibility of the excavator overturning, and it cannot be competent for work, and there are safety hazards.

Third, consider the discharge pressure of the excavator

The maximum discharge pressure of the excavator should be higher than the working of the breaker so that the breaker can exert the best force. Generally, the working pressure of the excavator should be higher than the working pressure of the breaker by30-40 bar.
